SPECIFICATION

ENGINE TYPE:  4 Stroke,Water Cooled

MAX.POWER(KW/rpm):  14KW/7000rpm

MAX.TORQUE(NM/rpm):  20N.M/5500rpm

MAX.SPEED:  40 MPH

CYLINDER NO.:  Single Cylinder

BORE STROKE:  72.5mm × 66.8mm

DISPLACEMENT:  276cm

COMPRESSION RATIO:  10.3:1

CARBURETOR:  CVK052

LUBRICATE:  Combined force-feed and splash lubrication

AIR FILTER TYPE:  Dry Air Filter Net

SPARK PLUG:  DR8EA

STARTING:   Electric Start

IGNITION:  C.D.I

STARTING PROCEDURE:  Start Electric Lock, Hold brake ,Press Start Switch

SHIFT SWITCH: Yellow switch between 2W and 4W

TRANSMISSION:  Automatic CVT with H/L/N/R

FINAL DRIVE SYSTEM:  Shaft/4WD

BRAKE FRONT:  Hydraulic disc brake

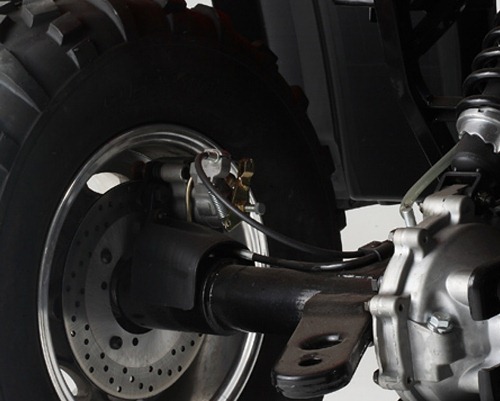

BRAKE REAR:  Hydraulic disc brake

PARKING DEVICE:  Mechanical brake lock on rear disc

BRAKE DISTANCE:  7m/30km/h

FRONT SUSPENSION: Mcpherson front suspension

REAR SUSPENSION:  Swing Arm

SHOCK ABSORBER(F):  Double

SHOCK ABSORBER(R):  Single

BATTERY:  12V/14AH

ENGINE OIL:  1.5L

TRANSMISSION OIL:  0.8L

REAR OIL:  0.3L

FUEL:  90# unleaded gasoline

FUEL CAPACITY:  12.5L

TURNING RADIUS:  3280mm

MAX.LOAD(kgs/lbs):  156kg

FRONT TIRE:  25×8-12

REAR TIRE:   25×8-12

WHEEL MATERIAL: Aluminium alloy

OVERALL:  2016×1180×1237mm

CARTONE SIZE (L/M/H):  2280×1290×870mm

WHEELBASE(mm):  1271mm

SEAT HEIGHT(mm):  895mm

GROUND CLEARANCE:  183mm

NET WEIGHT(kgs/lbs):  275kg

Optional Accessories

winch
